Calculating CULTEC Chambers For Residential Drainage

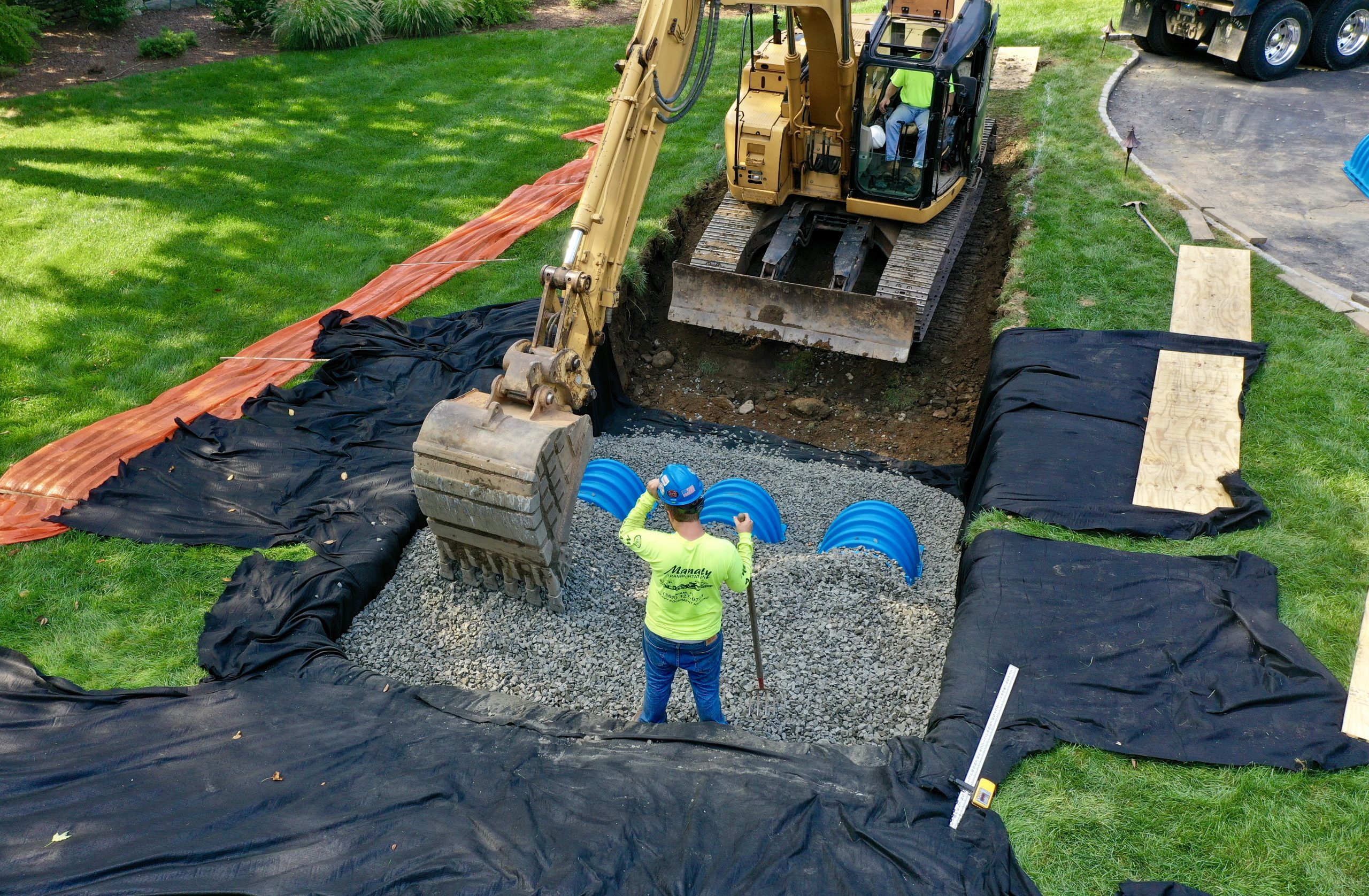

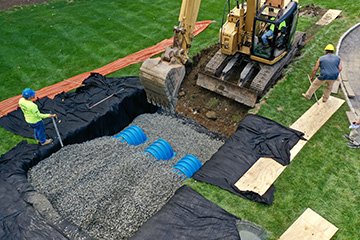

CULTEC, Inc.’s chambers may used in residential applications to control rainwater collected from gutters and/or catch basins. The chambers collect and store the stormwater underground until the soil is able to accept it back into the ground. Puddles and saturated soil are eliminated as water is diverted into the chamber and recharged into the ground. CULTEC chambers are lightweight and easily transported by hand making them ideal to install in tight areas or where minimal site disturbance is desired.

CULTEC Plastic Chambers

  • Control rainwater from gutters, patio, driveway and other impervious surfaces
  • Eliminate flooded basements and yards
  • Act as dry wells to contain water from sump pump, washer machine, pool backwash or water softener discharge

System Benefits

  • Large storage capacity in small footprint
  • Fully-formed unit containing no separate parts*
  • Lightweight
  • Can be carried by one or two people

*The Recharger 902HD requires separate end caps.

  • Easily transported by pick-up truck
  • Corrugated arch design for structural integrity
  • Quick and easy installation
  • Minimal site disturbance

CULTEC Drywell Calculator

Current version is: v.042015 rev.073118
MS-Excel spreadsheet that calculates out the number of chambers requred based on the impervious area and rainfall event which is input. These calculations are for non-traffic applications only.

Click image to see info for our Landscaper Series

Click image to view brochure

We are able to assist you in your design by performing preliminary calculations and supplying AutoCAD layouts free of charge
