Stormwater Systems

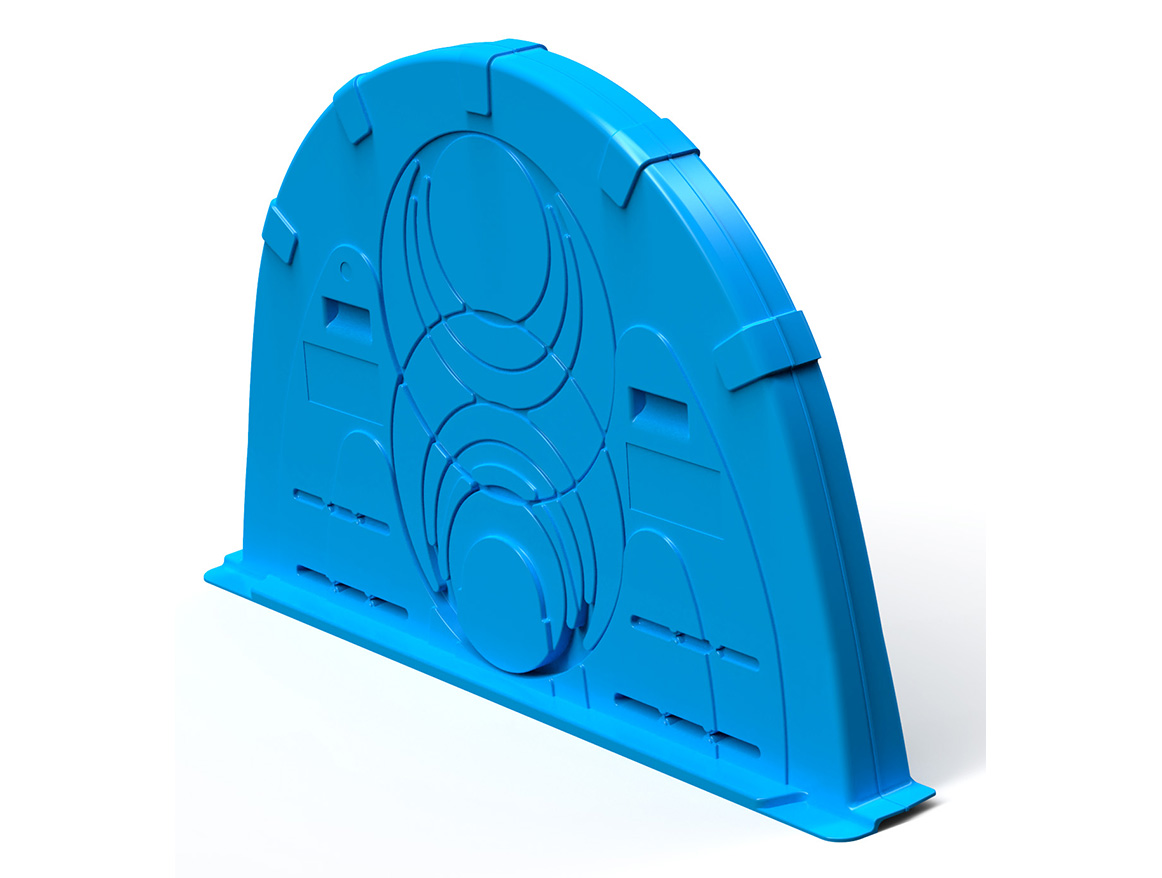

RECHARGER® 902HD END CAP
Compatible with Recharger 902HD
MODEL # 902HD EC
Download PDF
The Recharger 902HD End Cap is used with the Recharger 902HD Stormwater Chamber to cap the end of chamber rows.
| Length | 2.33 ft0.71 m |
| Width | 78 in1982 mm |
| Height | 48.5 in1231 mm |
| Installed Length | 2.00 ft0.61 m |
| Chamber StorageThese values are based on the installed length of the chamber. See specifications for installed length. | 9.01 ft³/ft18.02 ft³/unit0.83 m³/m0.51 m³/unit |
| Min. Installed StorageThese values are based on the installed length of the chamber. See specifications for installed length. | 22.08 ft³/ft44.16 ft³/unit2.05 m³/m1.25 m³/unit |
| Max. Inlet Opening in End Wall | 24 in600 mm |
